Faymonville N-3-A-18-13.60-22.5-2.54 2012 Low loader

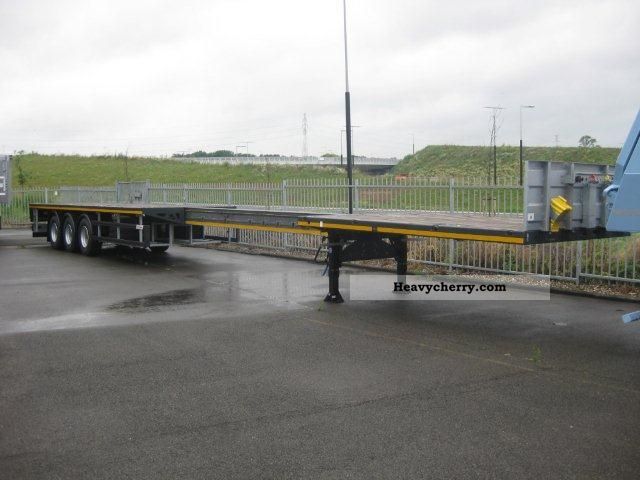

2012 Faymonville  N-3-A-18-13.60-22.5-2.54 Semi-trailer Low loader photo
2012 Faymonville  N-3-A-18-13.60-22.5-2.54 Semi-trailer Low loader photo 12012 Faymonville  N-3-A-18-13.60-22.5-2.54 Semi-trailer Low loader photo 2
Click photo to enlarge



Shared by a-a-rudakov on Apr 5,2012

Model ID
Manufacturer (Make)Faymonville
Model NameN-3-A-18-13.60-22.5-2.54
Year2012
CategorySemi-trailer / Low loader
TECHNICAL SPECIFICATION
Permissible Gross Vehicle Weight(GVWR)45,000 kg
Vehicle Axles3
Vehicle Width2,540 mm
Vehicle Height1,380 mm
Permissible Load Capacity (kg)36,500 kg
Description
Ausfhrung extendable cargo area.
Loading area with 30 mm thick Harthlzbohlen.
The supply lines are protected in the extendable carrier and adapt to the respective floor length.
SAF axles, tech. 9,000 kg, two axes rigid, an axle self tracking,
Achswerkzeug.
WABCO brake system of the brand, with EBS system pursuant to EU rules, WITHOUT connection cable to the tractor.
Tires: 385/65 R 22.5
24-volt lighting system in \Lateral illumination in LED.
 - Plan hooks about every 500 mm, on the outer part of the platform (d 8 mm).
- 5 pairs of galvanized stanchions approximately 100 x 50 mm, 1,000 mm high.
- Open Bracket (Stainless Steel) fr stanchions / documents when not in use across under the floor in front of the axles.
- 4 pairs of twist locks (Containerverschlsse) in the back (for 2 x 20 'container or 1 x 40 \u0026 # 39; container).
- Mechanical Sattelsttzen Fri Sttzlast approximately 48,000 kg, with 2-speed gearbox.
- Two wheel chocks with holder.
- Locking the back with tapered welded Arretierungsprofilen, at first 3,000 mm extract a locking point every 500 mm, then an all 1,000 mm.
- 14 pairs of lashing rings lying buried in the outer frame of the loader area, folding outwards.
- When the kingpin, wherein said second axis and at the rear of the trailer each have a pair lashing rings (LC 10 000 daN).
- All other lashing rings (C 5.000 daN).
- 11 pairs Rungentaschenim recessed outer frame of the loading area, fr stanchions 100 x 50 mm.
- 1 stake pocket cross bar in the floor of the gooseneck mounted, fr stanchions approximately 100 x 50 mm.
- 3 Stake pocket strips transversely mounted in the floor of the cargo area, fr stanchions approximately 100 x 50 mm.
- 1 spare wheel with holder under the floor in the right direction.
- A lockable tool box (HDPE)1,250 x 500 x 550 mm (L x W x H) under the floor in direction of travel.
