on Apr 4,2012
| Model ID |
|---|
| Manufacturer (Make) | Kroeger |

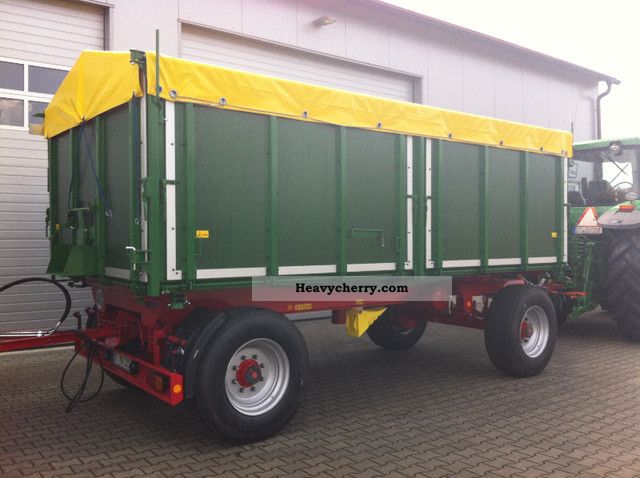

| Model Name | Tipper Portal Internal tailgate No. 9999 |
| Year | 2012 |
| Category | Trailer / Three-sided tipper |
| TECHNICAL SPECIFICATION |
|---|
| Permissible Gross Vehicle Weight(GVWR) | 18,000 kg |
| Vehicle Axles | 2 |
| Vehicle Width | 2,500 mm |
| Loading Space Length | 5,200 mm |
| Loading Capacity | 2,450 mm |
| Lifting Height | 1,500 mm |
| Shipping Volume | 20 m³ |
| Permissible Load Capacity (kg) | 13,290 kg |
| Description |
|---|
Suspension:
First Axle leaf sprung
Second Axle leaf sprung
Brake:
1st axis: drum brake
2nd axis: drum brake
Axle manufacturer: SAF
Tires: 100% retreaded tires
Roll Plane: Yes
Building dimensions / loading internal Size approx:
Length: 5200mm
Width: 2450mm
Height: 1500mm
Board Wall height: 1500mm
Platform height: 1400mm
Portaltren in the same direction and at the left rear
Air and oil engine Fri 2nd Trailer
Crank + Fri chock parking brake
Rear wall board in one piece, but divided immediately verfgbar
Prior sale, Irrtmer and typing errors |
