Stone splitting machine GESTRA 2010 Other construction vehicles

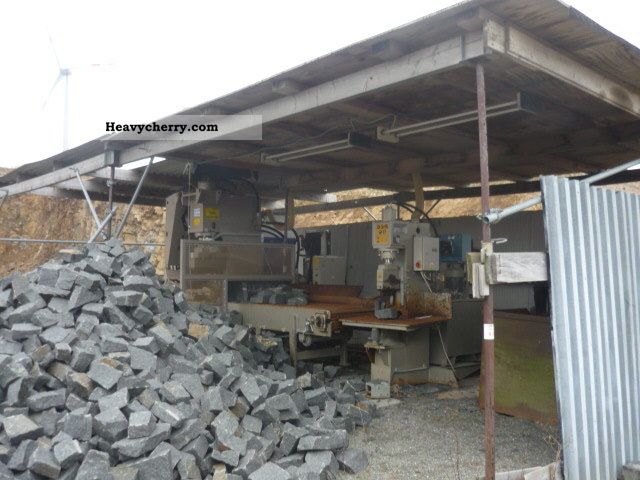

2010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo

2010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 12010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 22010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 32010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 4
2010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 52010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 62010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 72010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 8
2010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 92010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 102010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 112010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 12
2010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 132010 Other  Stone splitting machine GESTRA Construction machine Other construction vehicles photo 14
Click photo to enlarge


Shared by kintevs on Feb 10, 2012

Model ID
Model NameStone splitting machine GESTRA
Year2010
CategoryConstruction machine / Other construction vehicles
Description
Steinspaltmschine GESTRA The plate conveyor splitting machine manipulator MK 800, details: drive belt with steel plate width 800 mm height 960 mm belt conveyor length 4000 mm, a rear side wall Engine power 1.5 kW, speed, rpm, the 7.5 m / control via front control panel joystic paving-stone splitting machine HSM 500x500/160 to-gap power 160 to 480 mm-diameter width, splitting stroke 500 mm, number of Upper knife 8 pcs, 60x40x150 mm diameter scale, lower numbers 8 pieces knife, knives extent 60x40x150 mm, hydraulic system with Bosch Pregler Hyd. Working pressure of 32 MPa, 400 liters of oil in the tank, motor power 11 kW, Khlaggregat air / oil-ASA 0, 75 kW, 1.3 kW heating element Full-feed power 13.5 kW, Dimensions 1200 mm x 2800 mm x 3300 mm Weight ca.5.5 to manipulator MK 800 behind with a width of 800 mm between the fingers, the full reach before splitting machine 1400 mm, Max Rangethe diameter 400 mm, Max Gripping force 600 kg, 800 kg weight, guard 1800 mm x 1900 mm. This description does not constitute a binding offer and may contain errors. No guarantee on all Angaben.Nähere like to request data
 Stone Splitting Machine GESTRA, Steel plate conveyor TD 800 x 4000, splitting machine HSM 500 x 500/160 tons, manipulator MK 800, details: drive belt with a steel plate 800 mm wide conveyor belt height 960 mm length 4000 mm, speed 7.5 m min-the / Operated by joystic, 160 to 160 tons Power-Crush, width 480 mm, 500 mm stroke splitting, number of upper knives 8 piece knife extent 60x40x150 mm, number of lower 8 pieces knife, knives extent 60x40x150 mm, hydraulic system Bosch Pregler with hydraulic working pressure of 32 MPa, amount of oil in the tank 400 liters, motor power 11 kW - ASA-0, 75 kW heater 1.3 kW total feed power 13.5 kW, Dimensions 1200 mm x 2800 mm x 3300 mm, weight about .5.5 to, manipulator MK 800 with a width of 800 mm between the fingers, the full reach before splitting machine 1400 mm, Max distance behind the 400 mm diameter,
