Stas WFL approximately 92 m³ 2007 Walking floor

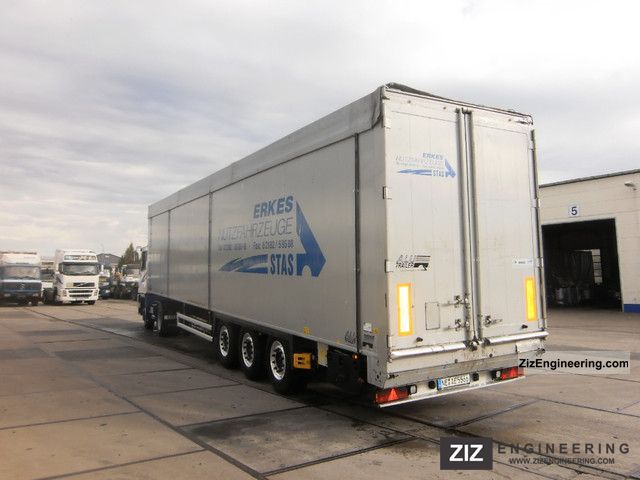

2007 Stas  WFL approximately 92 m³ Semi-trailer Walking floor photo
2007 Stas  WFL approximately 92 m³ Semi-trailer Walking floor photo 12007 Stas  WFL approximately 92 m³ Semi-trailer Walking floor photo 22007 Stas  WFL approximately 92 m³ Semi-trailer Walking floor photo 32007 Stas  WFL approximately 92 m³ Semi-trailer Walking floor photo 4
Click photo to enlarge



Shared by viruszaa on May 10,2012

Model ID
Manufacturer (Make)Stas
Model NameWFL approximately 92 m³
Year2007
CategorySemi-trailer / Walking floor
TECHNICAL SPECIFICATION
Permissible Gross Vehicle Weight(GVWR)36,000 kg
Vehicle Axles3
Loading Space Length13,535 mm
Loading Capacity2,480 mm
Lifting Height2,750 mm
Shipping Volume92 m³
Permissible Load Capacity (kg)28,420 kg
Description
Aluminum chassis, aluminum body with sliding floor system \with DC air suspension, lifting and lowering, Beladungsmanometer, lift axle with traction, elec. In the tractor brake wear indicator (display), 6 wheels with tires of size 385/65 R 22.5 tires on approximately 60% on steel rims silver, 11.75x22.5 ET 120, the king pin 2 \screwed into a 10 mm thick plate, Mech. Sttzwinden to 2x20., Make JOST module with 2-speed, brake system according to the EEG Standards, dual-line braking system EBS Wabco D + system, spring-loaded brake acting on two axles with service at the rear, aluminum air tank system, the electrical. System is designed according to the guidelines of the street safe with two 5-chamber lights integrated in the ALU Aspöck type rear end, 24 V system with a second socket Fri special operation, with side. Clearance lights with LED, 2 reflective warning signs on the Hecktren, Posileuchth front 2x white, 2x red tail, 2 sep Rckfahrscheinwerfer integrated in the underbody protection, the aluminum tray is fully welded in a straight Rckwand Ausfhrung with 2 mm thick aluminum Flgeltren 50/30 with 2 rotating rods with Kevlar-Plane, ALU -Kotflgel with rubber mud flaps, 1 ALU spare wheel, side. ALU-folding collision in Ausfhrung, 2 tool box 860x500x450 mm approx in plastic, 3.7 m aluminum ladder, roll tarp (660gr. / m) with roll tarp system incl Rollatte and lateral. Straps, roll tarp right inside of about 400 mm with Panama Plane-reinforced runway with a double ascent on the front wall, 2 wheel chocks,

* Offers subject to change and images *
